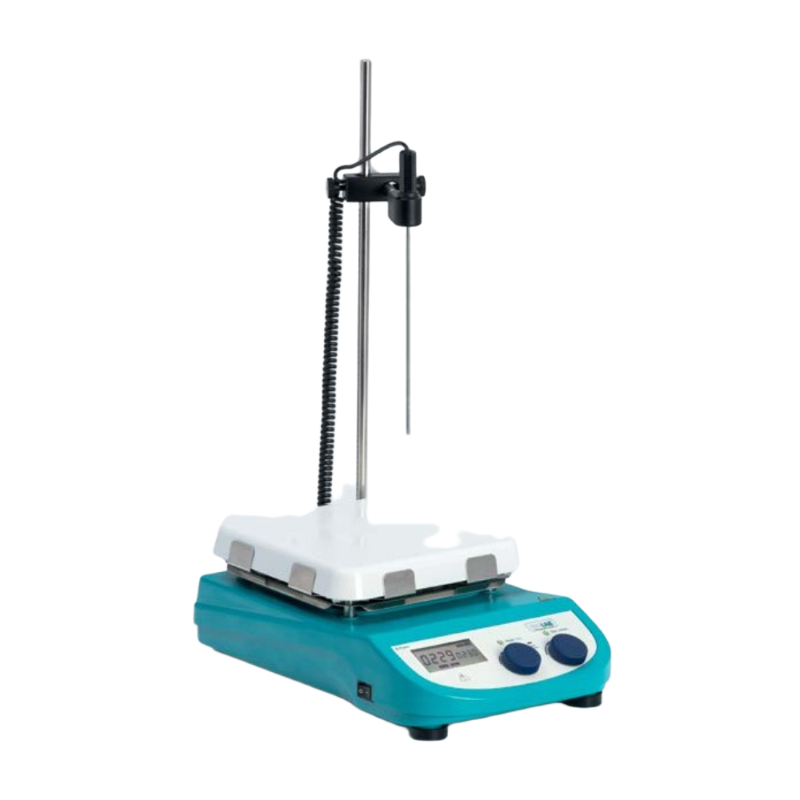

Magnetic Stirrer – With Hot Plate

Featured with an explosion proof
brushless DC motor with low noise level
offers a stirring volume up to 20 lt.
Ceramic top plate guarantees perfect
chemical resistance against acids.
Integrated the heater provides excellent
heat transfer rate and quick heat up.
Aluminium alloy housing protects all
components from aggressive effects and
guarantees safety with a long life time.
Electronic speed control from 100 to
1500 rpm provides a precise stirring.
LCD panel for display for set & actual
temperature and set & actual speed.
Guarantees excellent heating control
from ambient temperature to 550°C.
Overheat protection circuit turns off
the heater if the top plate temperature
reaches 580°C for any reason. LCD
display will show “HOT” if hotplate
temperature is over 50°C.
Supplied complete with PT1000
temperature sensor, support rod and
fixing clamp.
Catalogue No: 613.06.001
Top Plate: Glass ceramic
Weight: 5.3 kg
Voltage: 100 – 240 V
Display: LCD
Dimensions: 215 x 360 x 112 mm
Motor Type: DC motor
Capacity: 20 L
Power: 1050 W
Range: 100 – 1500 rpm
Plate Size: 184 x 184 mm
Frequency: 50 / 60 Hz
Output: 1000 W
Range Accuracy: ±1 % > 100°C
Safety Temp.: 580°C
Warning: 50°C
Accessories: Sensor PT 1000
